Outboard Motor Tohatsu offers the best outboard motors
Outboard Motor 2-Stroke

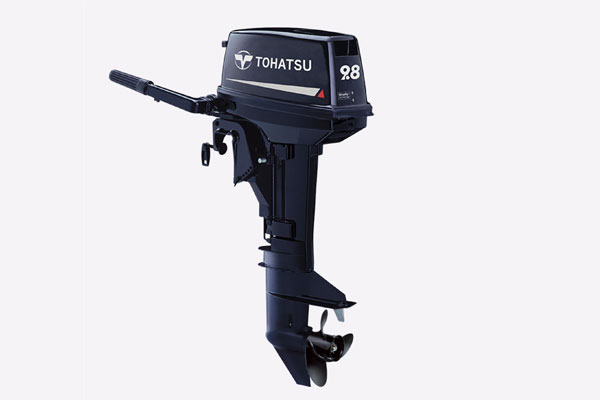

M9.8B
SPECIFICATIONS
| Engine |
Two Stroke 2 Cylinder |
| Output |
9.8 ps (7.2 kw) |
| Displacement |
169 cc (10.31 cu.in.) |
| Bore x Stroke |
50 x 43 mm (1.97 x 1.69 in) |
| Starting |
Electric or Manual |
| Control Type |
Tiller Handle |
| Gear Shift |
Forward - Neutral - Reverse |
| Gear Ratio |
2.08:1 (13:27) |
| Ignition System |
ATDC1゜- BTDC17゜ |
| Propeller Selection Range |
5" - 9.5" |
| Transom Height |
15", 20", 25" |
| Fuel |
Unleaded Gasoline (87 Octane) |
| Oil Type |
Genuine recommended 2stroke engine oil (TCW-3) |
| Fuel Tank |
12 L (3.17 US Gal.) Separate Fuel Tank |
| Weight* |
26.0 Kg (57 lbs.) |
| Alternator Output |
Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Max. RPM Range |
5,000 - 6,000 |
| Start In Gear Protection |
Standard |
| Thermostat Controlled Cooling System |
Standard |
| Through-The-Prop Exhaust |
Standard |
| Shallow Water Drive |
Standard |
| Engine lubrication system |
Premixed Fuel |
